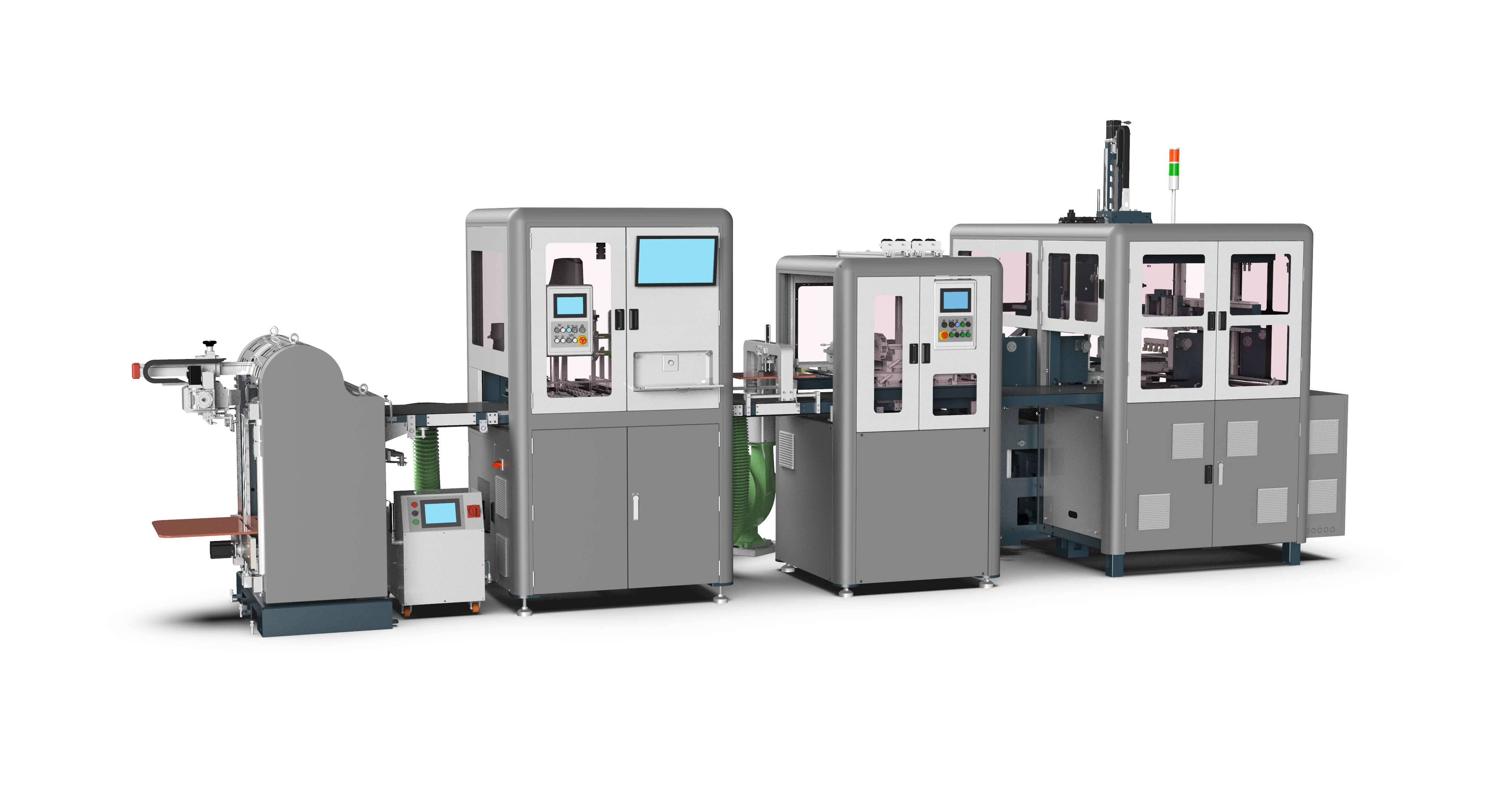

HM-ZD4354Lean automatic intelligent box-making with greyboard assembling capability. It is suitable to make mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, etc.
Features and function：
Greyboard material saving.
Single Wrapper.
Parametric intelligent adjustment.
Parameters adopts computer digital setting.
Automatic feed paper and greyboard.
Intelligent gluing system, automatic adjust glue density and temperature.
Wrapper can input 300 product formulas.
Multifunctional Robot Vision Image Positioning System (spotting accuracy of ±0.05mm).
Wrapper can automatic lift and wrap box.
Automatic control system for glue viscosity (optional).
Bottom mould use Piston type.
Main Slider and pull mold section synchronized.
| Model | HM-ZD4354Lean | |
| Greyboard Thickness | Thickness T | 1.5–5mm |
| Paper Size (W=Length, L=Width) | Length (Max.) B | 640mm |
| Length (Min.) B | 180mm | |
| Width (Max) A | 540mm | |
| Width(Min.) A | 90mm | |
| Thickness | 80-350gsm | |
| Finished Box Size (L=Length W=Width H=Height) | L(Max.) | 400mm |
| L(Min.) | 80mm | |
| W(Max.) | 300mm | |
| W(Min.) | 60mm | |
| H(Max.) | 140mm | |
| H(Min.) | 10mm | |
| Speed | ≤30pcs/min | |
| Voltage | AC380V | |
| Net Weight | 5500kg | |
| Machine Dimension | 8000 x 2500 x 3000mm | |
The Finished Box Max. sizes are determined by paper size. A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
Seller doesn’t provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).
